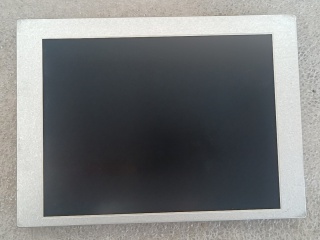

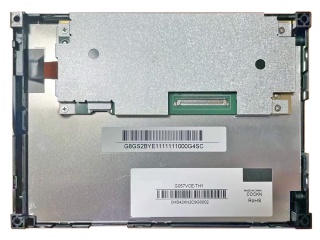

G057VCE-TH1 Innolux 5.7" LCD Panel VA 640×480 450nits WLED TTL 40pins

G057VCE-TH1 Innolux 5.7" LCD Panel VA 640480 450nits WLED TTL 40pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	G057VCE
Model :	G057VCE-TH1
Keywords Desc. :	Innolux 5.7" VA LCM 640×480 450nits WLED TTL 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	5.7"
Resolution :	640×480
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	115.2 (W) × 86.4 (H) mm (A.A)
Outline Dimension :	144 (W) × 104.6 (H) mm
Max. Depth :	12.8 mm
LC Family :	VA
Polarizer :	Transmissive
Brightness :	450 (Typ.)
Contrast Ratio :	1000:1 (Typ.)
Viewing Angle :	88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	262K
Backlight Type :	WLED
Interface Type :	TTL

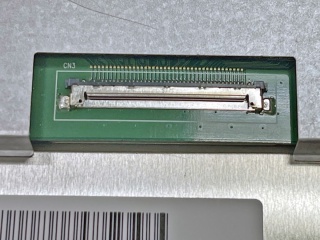

Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 85 °C
Storage Temp. :	-40 ~ 85 °C
