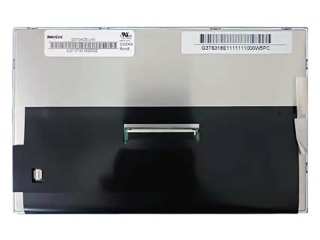

G070ACE-LH3 Innolux 7" IPS LCD Panel 800×480 500nits WLED LVDS 30pins

G070ACE-LH3 Innolux 7" IPS LCD Panel 800480 500nits WLED LVDS 30pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	G070ACE
Model :	G070ACE-LH3
Keywords Desc. :	Innolux 7" IPS LCM 800×480 500nits WLED LVDS 30pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD, IPS LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	7"
Resolution :	800×480
Aspect Ratio :	15:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	152.4 (W) × 91.44 (H) mm (A.A)
Outline Dimension :	165 (W) × 104 (H) mm
Max. Depth :	8.85 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	500 (Typ.)
Contrast Ratio :	800:1 (Typ.)
Viewing Angle :	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	262K/16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	30 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 85 °C
Storage Temp. :	-30 ~ 90 °C
