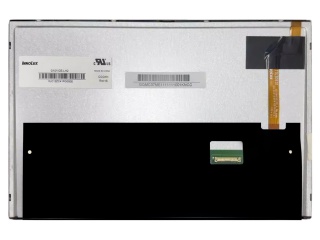

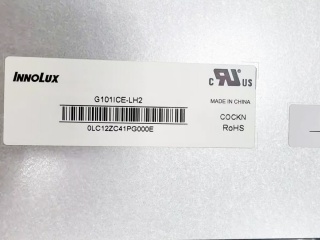

G101ICE-LH2 Innolux 10.1" IPS LCM 1280×800 1200nits WLED LVDS 30pins

G101ICE-LH2 Innolux 10.1" IPS LCD Panel 1280800 1200nits WLED LVDS 30pinsSp

Product Description

G101ICE-LH2 Innolux 10.1" IPS LCD Panel 1280×800 1200nits WLED LVDS 30pins

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	G101ICE
Model :	G101ICE-LH2
Keywords Desc. :	Innolux 10.1" IPS LCM 1280×800 1200nits WLED LVDS 30pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD
Application :	Industrial, Outdoor High Brightness
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	10.1"
Resolution :	1280×800
Aspect Ratio :	16:10 (W:H)
Form Factor :	Flat Rectangle
Active Area :	216.96 (W) × 135.6 (H) mm (A.A)
Outline Dimension :	230.7 (W) × 152.55 (H) mm
Max. Depth :	7 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	1200 (Typ.)
Contrast Ratio :	800:1 (Typ.)
Viewing Angle :	88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	262K/16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	30 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 80 °C
Storage Temp. :	-40 ~ 85 °C
