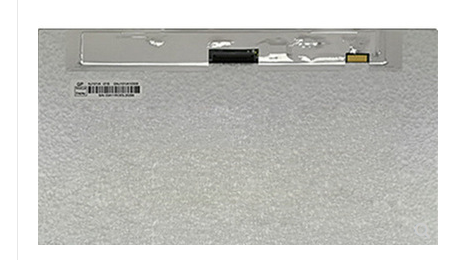

NJ101IA-01S Innolux 10.1" 1280×800 650nits WLED LVDS 40pins

NJ101IA-01S Innolux 10.1" 1280800 650nits WLED LVDS 40pinsSpecificationSys

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	NJ101IA
Model :	NJ101IA-01S
Keywords Desc. :	Innolux 10.1" IPS LCM 1280×800 650nits WLED LVDS 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, IPS LCD
Application :	Automotive Display
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	10.1"
Resolution :	1280×800
Aspect Ratio :	16:10 (W:H)
Form Factor :	Flat Rectangle
Active Area :	216.96 (W) × 135.6 (H) mm (A.A)
Outline Dimension :	229.46 (W) × 149.1 (H) mm
Max. Depth :	7.7 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	650 (Typ.)
Contrast Ratio :	1000:1 (Typ.)
Viewing Angle :	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
