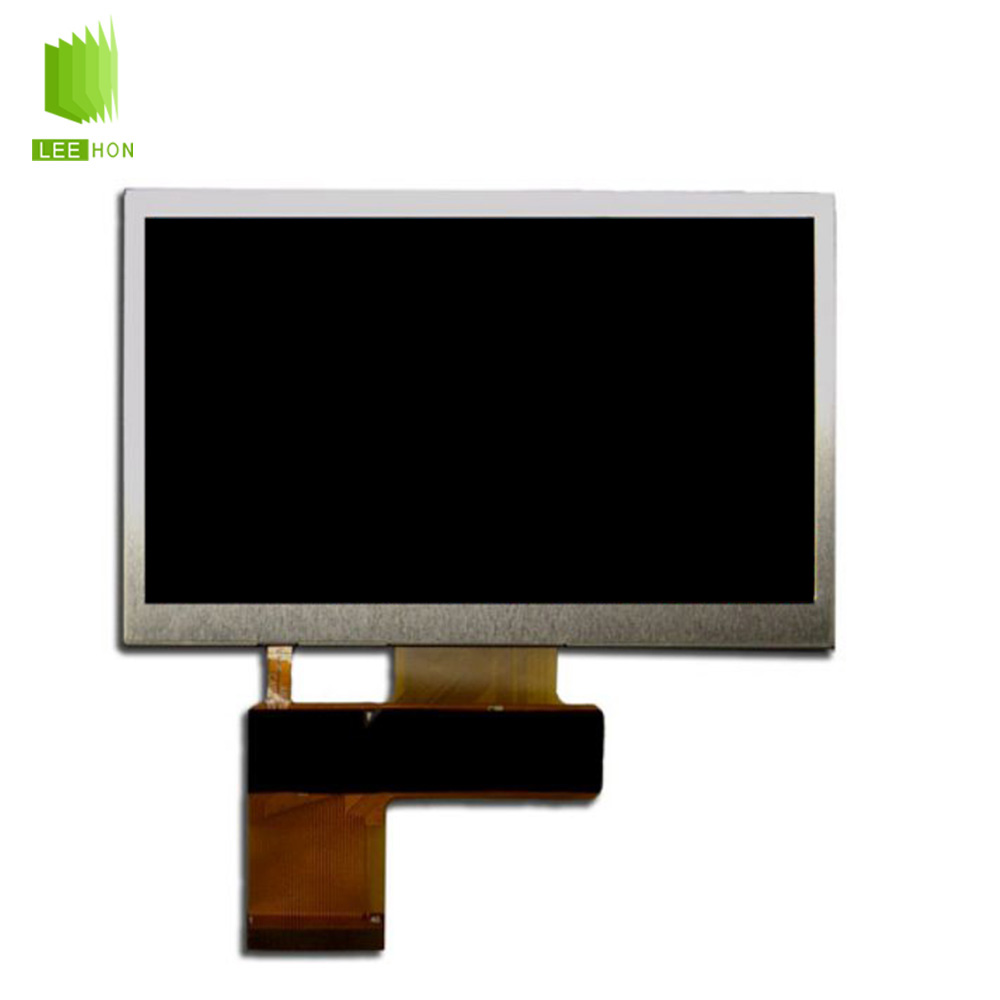

Kyocera 4.3'' 480x272 RGB LCD Panel TCG043WQLBAANN-GN00 Operator Terminal Display 4.3 Inch LCD Modules

$53

Key attributesTypeTFTDisplay Size4.3 inchPlace of OriginShanghai, ChinaSupplier

Product Description

Key attributes

Type

TFT

Display Size

4.3 inch

Place of Origin

Shanghai, China

Supplier Type

Agent

Brand Name

Tianma

Backlight Type

LED

Resolution

480x272, WQVGA 128PPI

Brightness

450 cd/m² (Typ.)

Operating Temperature

-20 ~ 70 °C

Brand

Kyocera

Display Type

TFT

Mounting Type

Panel Mounting

Screen Size

4.3"

Communication Interface

Parallel RGB (1 ch, 8-bit) , 40 pins FPC

Viewing Angle

70/70/60/65 (CR≥10) Left / Right / Up / Down)

Contrast Ratio

350:1

Backlight

WLED , 70k hours , without driver

Operating Temperature

-20 ~ 70 °C

Total Consumption

1.31W

Response Time

25ms

Surface

Glare (Haze 0%)

Color Depth

16.2M 46% NTSC

Packaging and delivery

Selling Units

Single item

Single package size

15X11X5 cm

Single gross weight

0.375 kg

Lead time

Quantity (pieces)	1 - 100	> 100
Lead time (days)	15	To be negotiated

Customization options

driver board+$30/piece (Min. order: 40 pieces)

touchscreen+$20/piece (Min. order: 50 pieces)

Customized packaging+$0/piece (Min. order: 200 pieces)

View details

Product Paramenters

Details Images

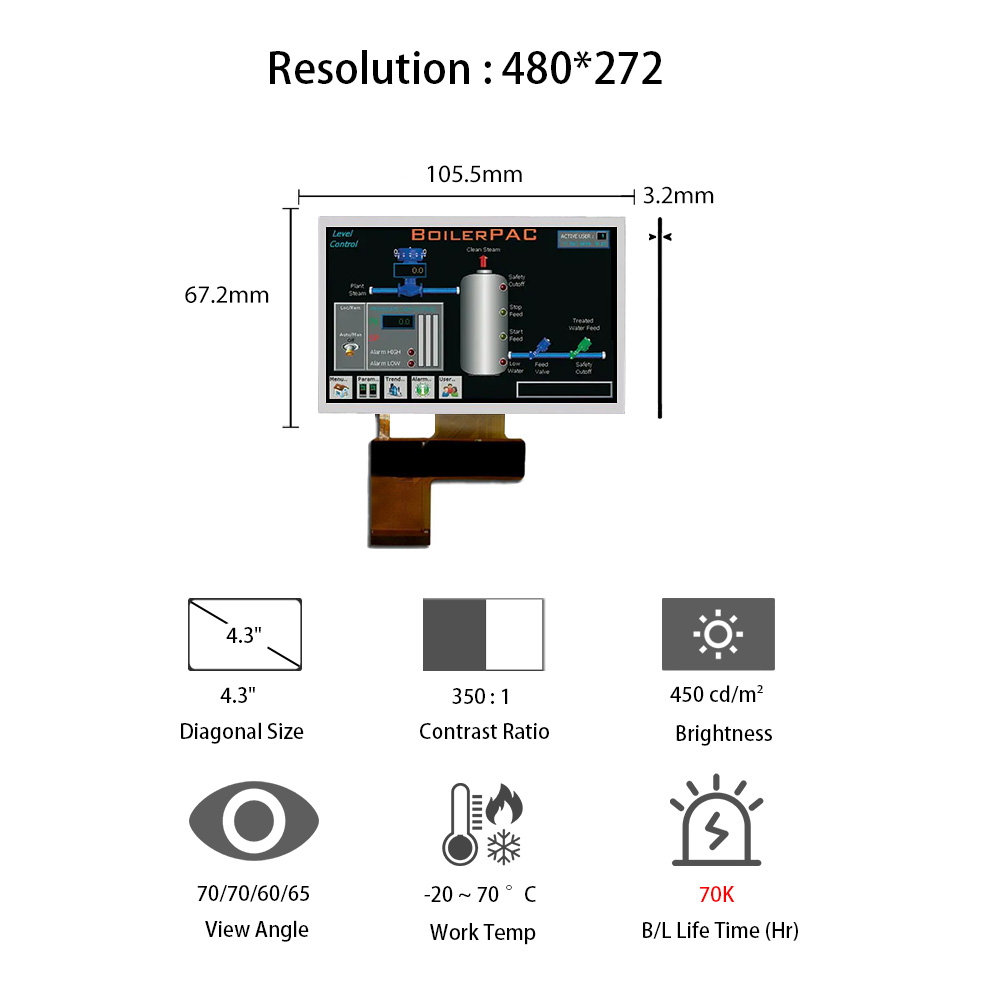

TCG043WQLBAANN-GN00 4.3 inch LCD Basic detail

LCD Modules Brand	Kyocera	Model	TCG043WQLBAANN-GN00
Power consumption	1.31W	Aspect Ratio	16:9 (H:V)
Resolution	480(RGB)×272, WQVGA 128PPI	Backlight	WLED , 70K hours , No Driver
Interface	RGB (1 ch, 8-bit) , 40 pins FPC	Display Mode	TN, Normally White, Transmissive
Brightness	450 cd/m² (Typ.)	Response	25ms
Contrast	350 : 1	Color Depth	16.2M 46% NTSC
View Angle	70/70/60/65	Weight	0.1KG
Active Area (mm)	95.04(W)×53.856(H) mm	Work Temp	-20 ~ 70 °C

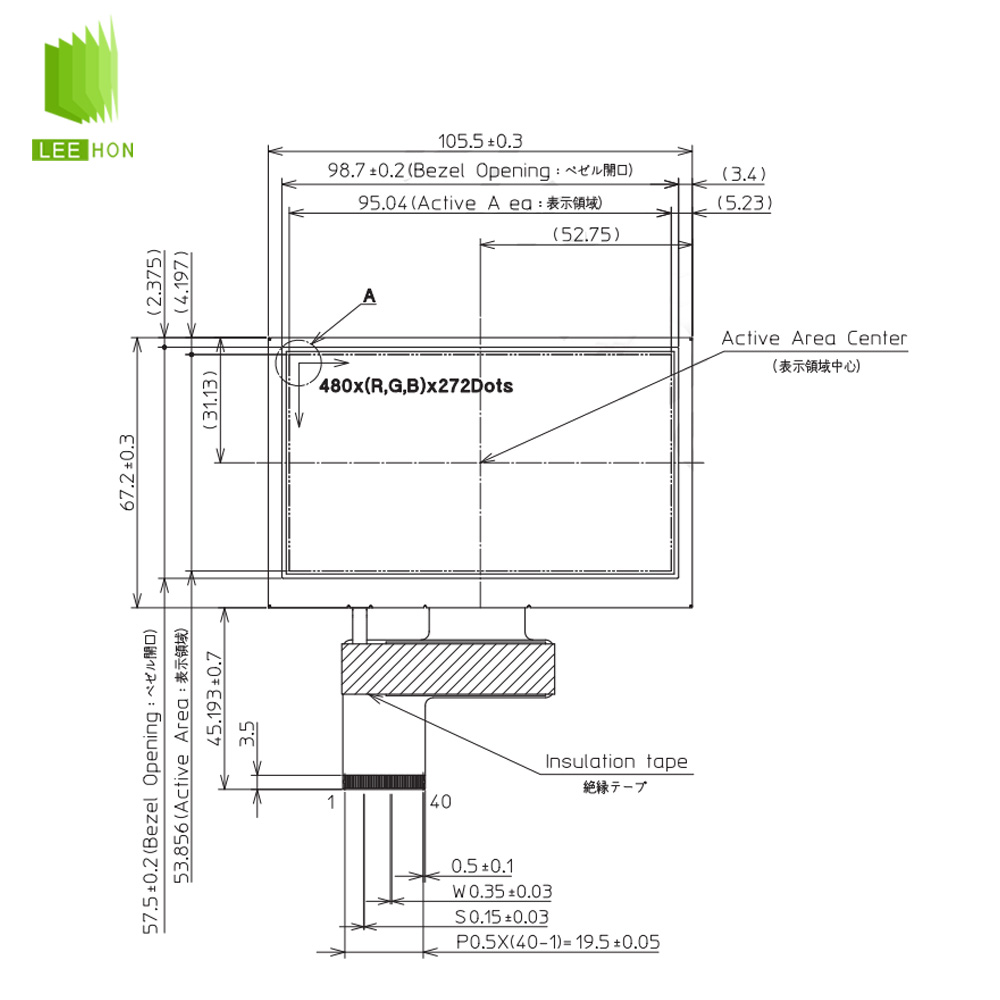

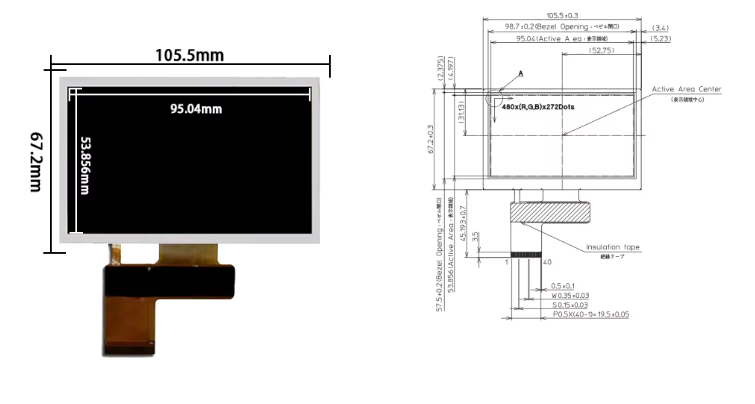

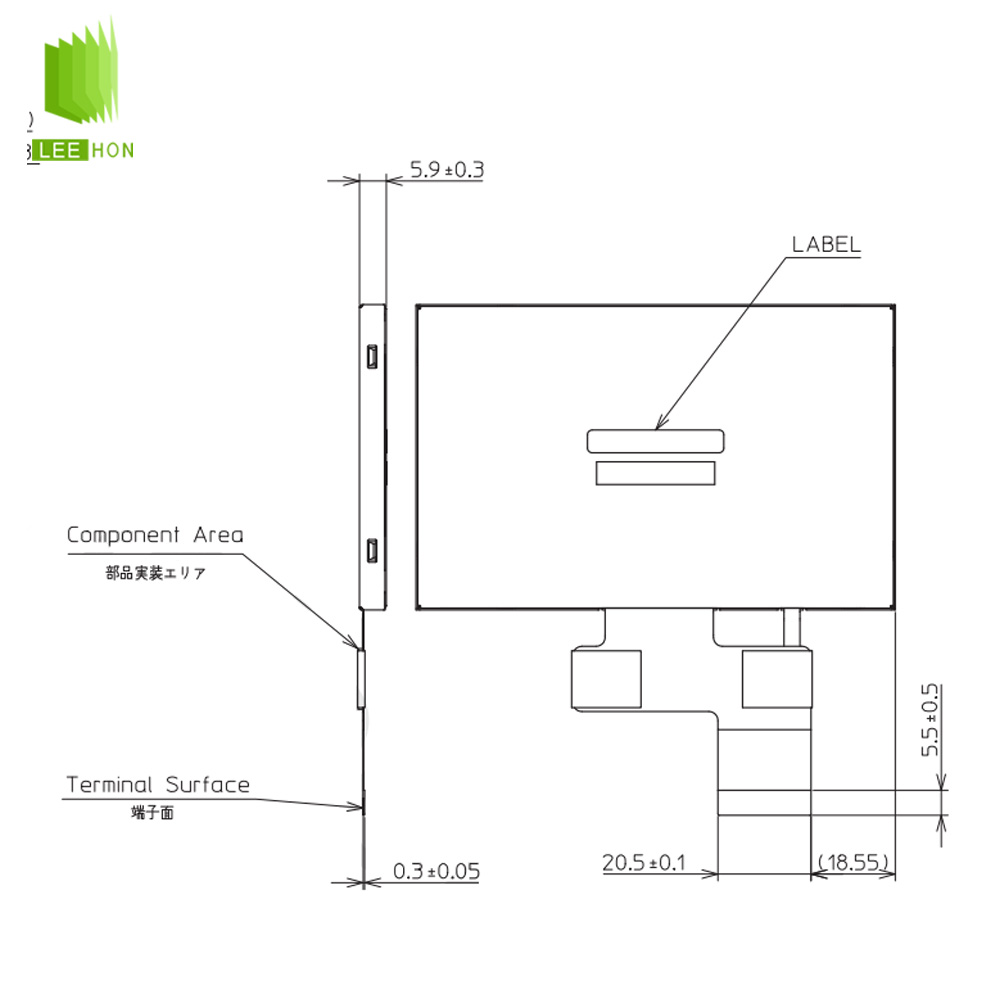

Outline Dimension	105.5 × 67.2 × 6.2 mm	Storage Temp	-30 ~ 80 °C

Popular Size

"Need a screen about 4.3 Inch 480*272 RGB Interface that survives your specs, not the other way around?"

→ Get your tailored LCD quote in 24 hours.

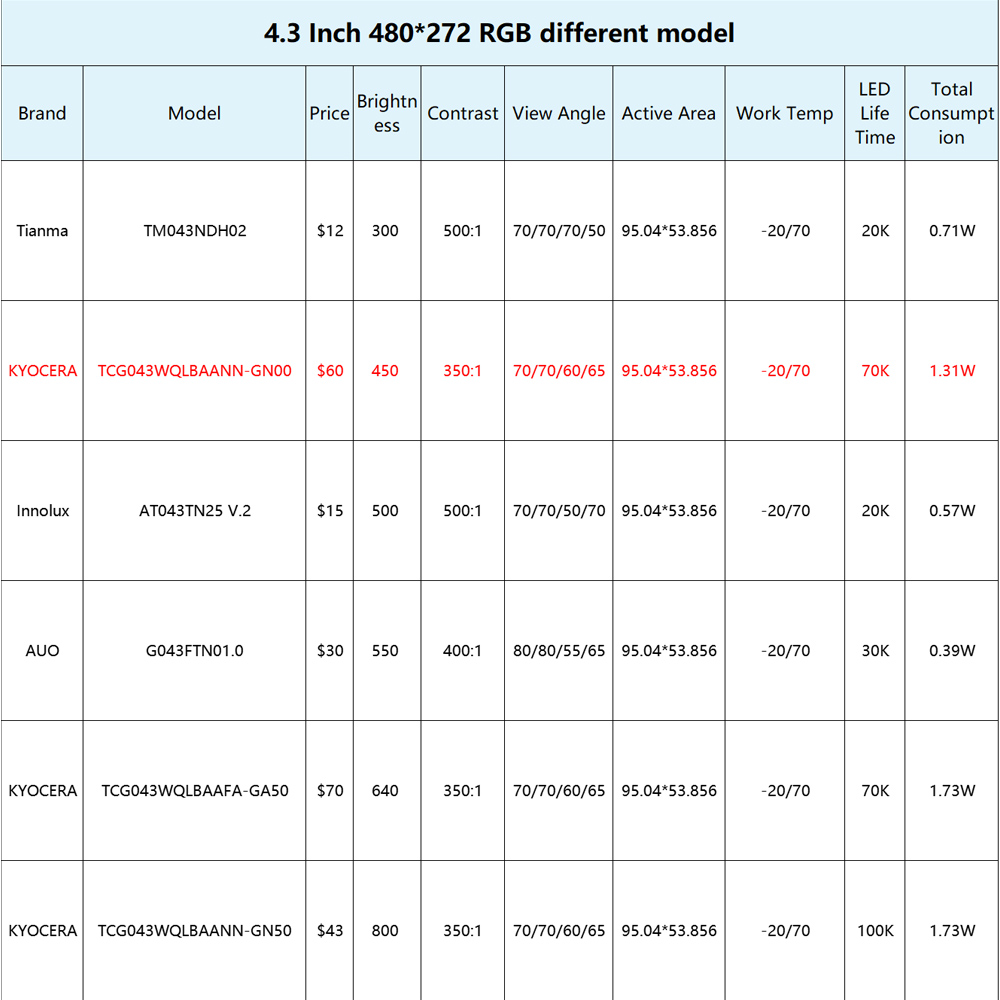

Brand	Model	Price	Brightness	Contrast	Active Area	Work Temp	LED Life Time
Tianma	TM043NDH02	$12	300	500:1	95.04*53.856	-20/70	20K
KYOCERA	TCG043WQLBAANN-GN00	$53	450	350:1	95.04*53.856	-20/70	70K
Innolux	AT043TN25 V.2	$15	500	500:1	95.04*53.856	-20/70	20K
AUO	G043FTN01.0	$30	550	400:1	95.04*53.856	-20/70	30K
KYOCERA	TCG043WQLBAAFA-GA50	$70	640	350:1	95.04*53.856	-20/70	70K
KYOCERA	TCG043WQLBAANN-GN50	$43	800	350:1	95.04*53.856	-20/70	100K
