DP+HD-MI Driver Board Industrial 1920 X 1080 LVDS LCD Wide Temp Compact AD Control Board

$15

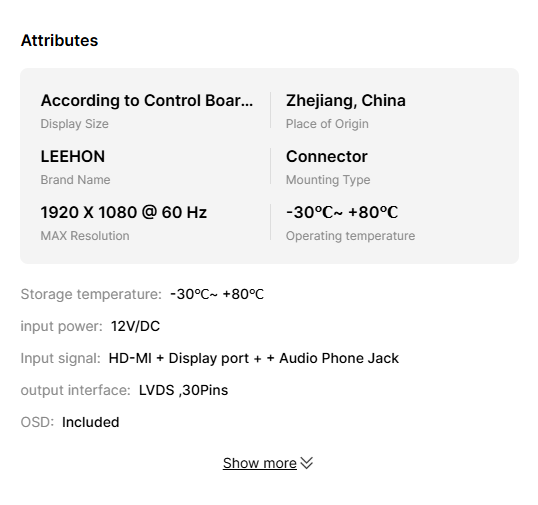

Key attributesDisplay SizeAccording to Control Board 's Max ResolutionPlace

Product Description

Display Size

According to Control Board 's Max Resolution

Place of Origin

Zhejiang, China

Brand Name

LEEHON

Mounting Type

Connector

MAX Resolution

1920 X 1080 @ 60 Hz

Operating temperature

-30℃~ +80℃

Storage temperature

-30℃~ +80℃

input power

12V/DC

Input signal

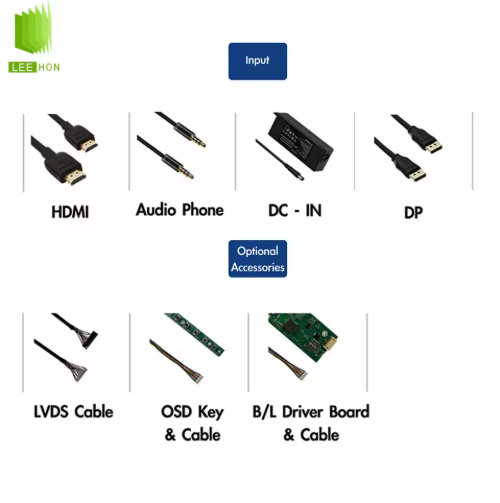

HD-MI + Display port + + Audio Phone Jack

output interface

LVDS ,30Pins

OSD

Included

Selling Units

Single item

Single package size

15X10X5 cm

Single gross weight

0.350 kg

Quantity (pieces)	1 - 100	> 100
Lead time (days)	15	To be negotiated

interface (Min. order: 20 pieces)

size (Min. order: 20 pieces)

View details

Product Paramenters

Details Images

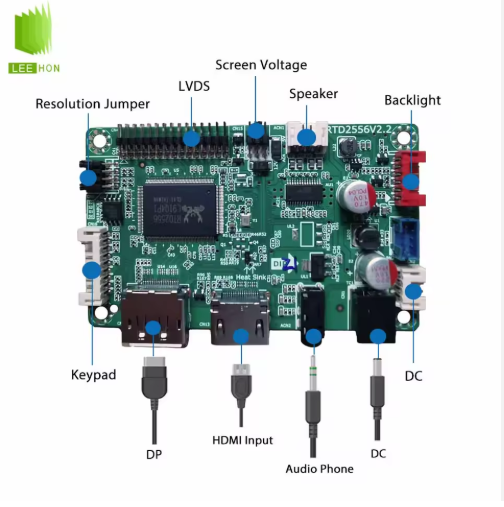

LH-2556V2.2

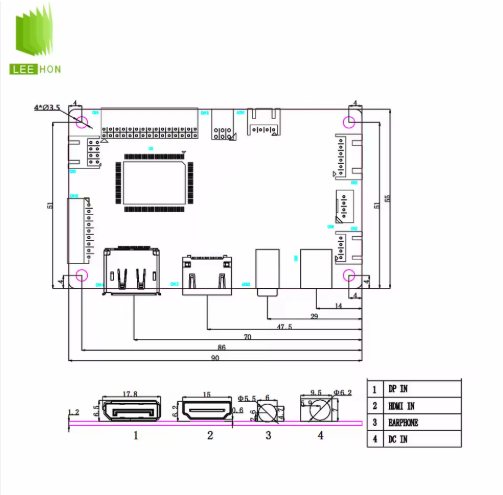

Resolution	1920 X 1080 @ 60 Hz	Outline Dimension	90 x 55 x 10 mm
Output Interface	LVDS, 30 pins	Input	HD-MI / DP * Built-in 2*5W8Ω audio amplifier
Operation Temp.	-30- 80 °C	Storage Temp.	-30- 80 °C
Voltage for LCD	3.3V, 5V,12V DC (Jump Select)	Support OS	WindowsMacOS Linux Android
