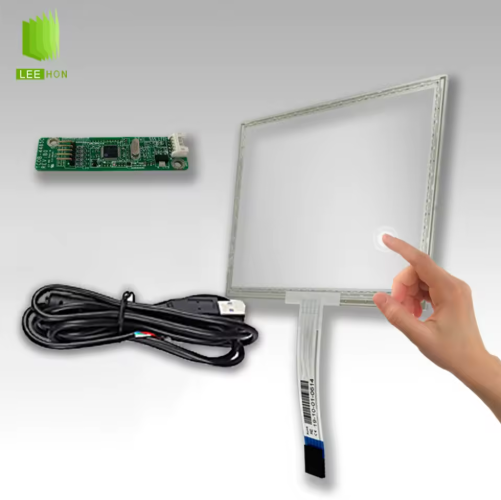

5.7 Inch 5-wire RTP F/G Mechanism, EETI IC, COB Type, USB interface 5.7 Inch Resistive Touch Screen

$17

Key attributesPlace of OriginZhejiang, ChinaBrand NameLEEHONModel NumberLH057R5U

Product Description

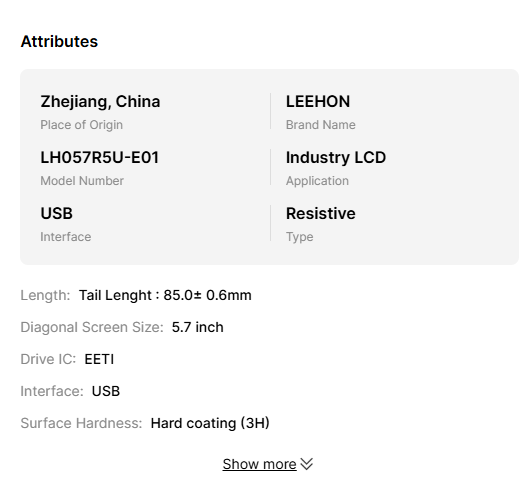

Key attributes

Place of Origin
Zhejiang, China
Brand Name
LEEHON
Model Number
LH057R5U-E01
Application
Industry LCD
Interface
USB
Type
Resistive
Length
Tail Lenght : 85.0± 0.6mm
Diagonal Screen Size
5.7 inch

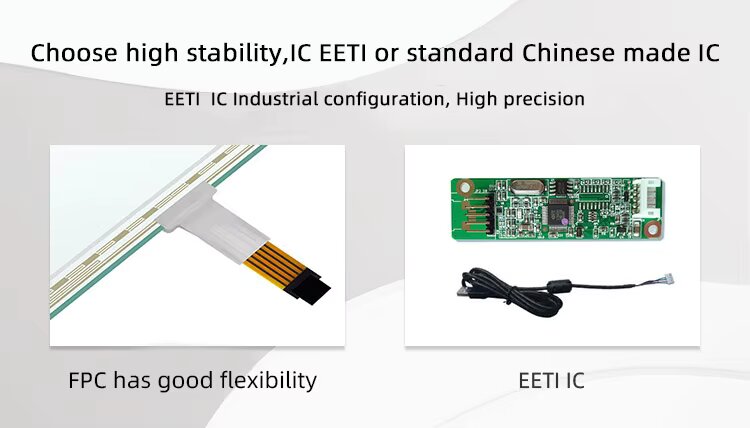

Drive IC
EETI
Interface
USB

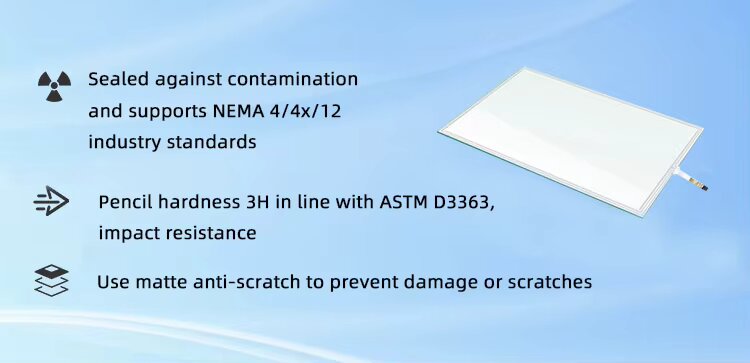

Surface Hardness
Hard coating (3H)
Operating Temp
-10 ~ 60 °C
Tail Exit
6 o'clock
Touch Points
1 point
Response time
≤10ms
Transmittance
>=80%

Packaging and delivery

Selling Units
Single item
Single package size
40X25X3 cm
Single gross weight
0.300 kg

Lead time

Quantity (pieces)1 - 1000> 1000
Lead time (days)35To be negotiated

Customization options

Customized packaging+$0/piece (Min. order: 200 pieces)
Customized logo+$0/piece (Min. order: 200 pieces)

View details

Ratings & Reviews

5.0
Very satisfied
Based on 269 reviews forverified purchases
Supplier service5.0
On-time shipment5.0
Product quality5.0
AllWith photos/videos (36)

Show reviews that mention:

Good service (11)Nice transaction (1)Fast delivery (90)
Showing all reviews in your chosen languageShow original
S
S***y
France
Verified purchase
Dec 20, 2024
I recently purchased the LEEHON product, and I must say, I am very impressed.The quality is excellent; it works as advertised and has exceeded my expectations.But Its price is a bit high compared to similar products on the market, but I believe the quality justifies it. In conclusion, I recommend the LEEHON product to anyone looking for a reliable and high-quality option....Show all
BOE 10.1 Inch Industrial Grade LCD Display 10.1 Inch LCD Module High Brightness IPS TFT LCD PanelSee product details
$24-28
Helpful (0)
S
S***y
France
Verified purchase
Dec 20, 2024
I recently purchased the LEEHON product, and I must say, I am very impressed.The quality is excellent; it works as advertised and has exceeded my expectations.But Its price is a bit high compared to similar products on the market, but I believe the quality justifies it. In conclusion, I recommend the LEEHON product to anyone looking for a reliable and high-quality option....Show all
BOE 10.1 inch TFT LCD Display 1280x800 LCD Panel Screen High Contrast IPS TFT LCD moduleSee product details
$24-114
Helpful (1)
S
S***y
France
Verified purchase
Dec 20, 2024
I recently purchased the LEEHON product, and I must say, I am very impressed.The quality is excellent; it works as advertised and has exceeded my expectations.But Its price is a bit high compared to similar products on the market, but I believe the quality justifies it. In conclusion, I recommend the LEEHON product to anyone looking for a reliable and high-quality option....Show all
AUO 10.1 Inch LCD Screen Panel G101STN01.0 Industrial Terminal Control TFT LCD Display LCD ModuleSee product details
$40-46
Helpful (1)

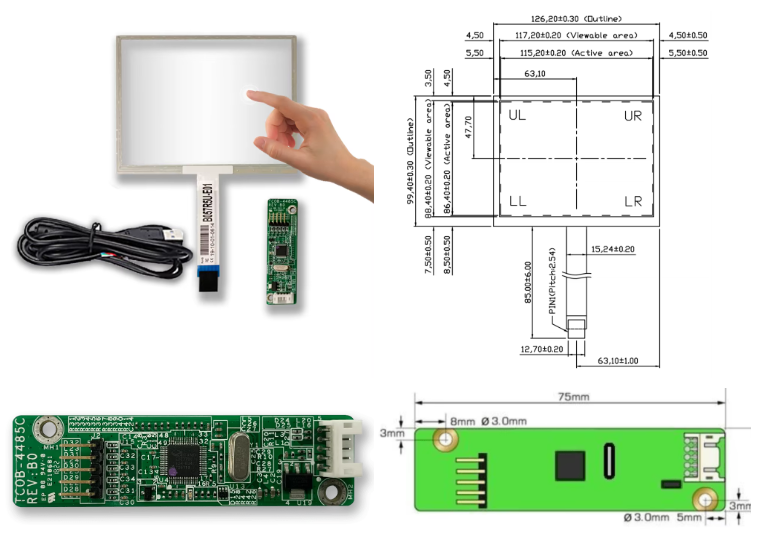

Product Paramenters



Product name
5.7" 5-wire RTP Touch (Glass)
Regular size
5.7''-23.8''

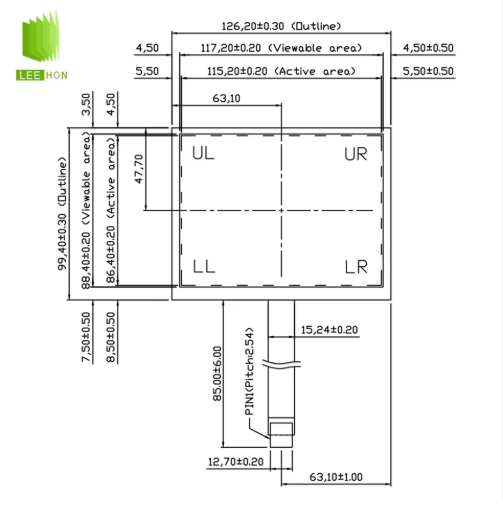

Outline Dimension of Glass
126.2（L）× 99.4（W）±0.3mm
Number of touch points
single point
Viewing area
117.2（L）×88.4（W）±0.2 (mm)

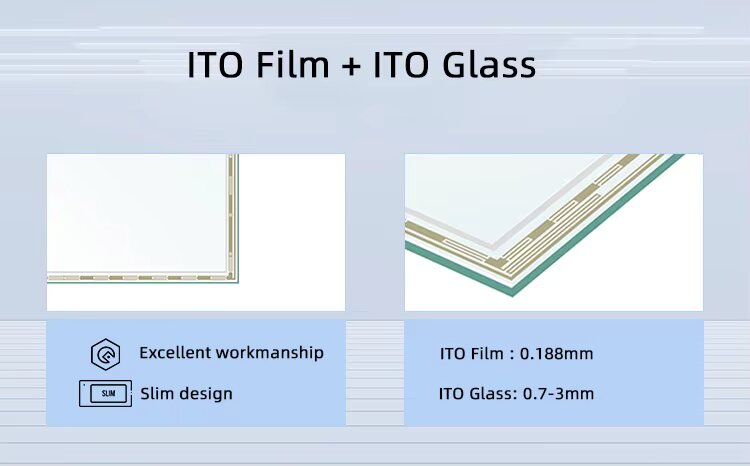

Structure
F/G
Active area
115.2（L）× 86.4（W）±0.2
Total Thickness
1.40± 0.2mm
Tail Lenght
85.0± 0.6mm

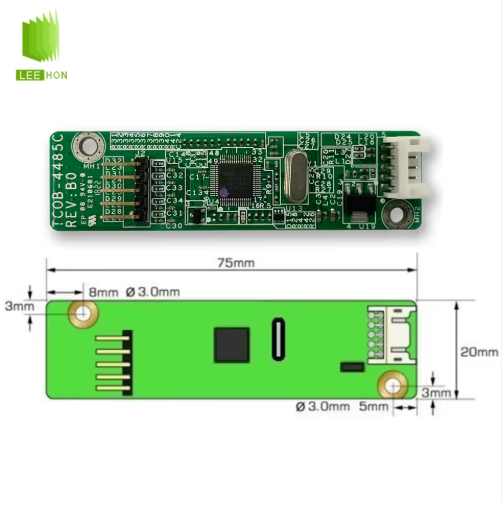

Chip
EETI, made in China

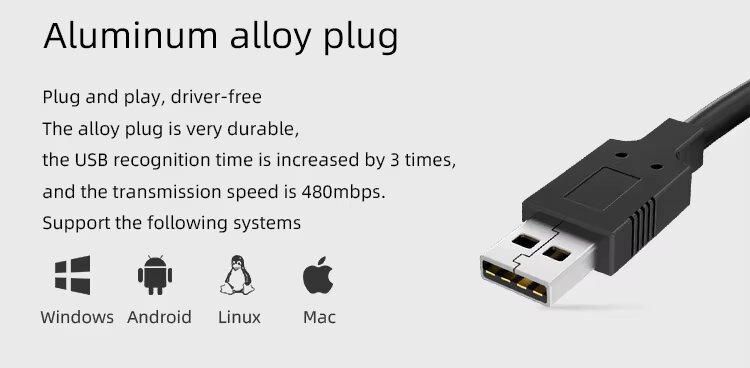

Interface
USB
Hardness
Hard coating (3H)
Touch with Glove
Available
Operating temperature
-10 ~ 60℃
FPC Type
COB
Transparency
≧80%
Optional Bonding Service
(Air Bonding / OCR Bonding)

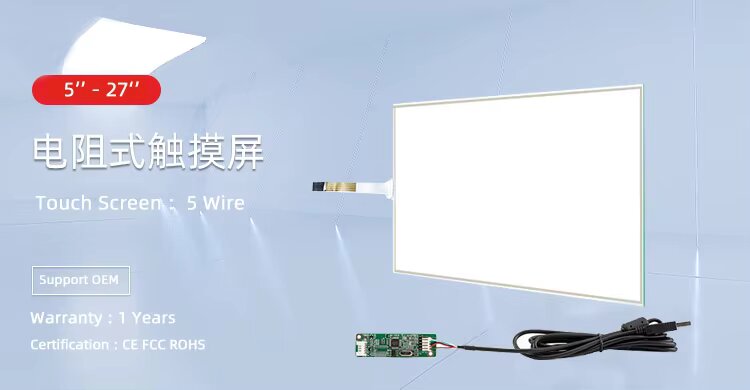

Details Images







Our Factory

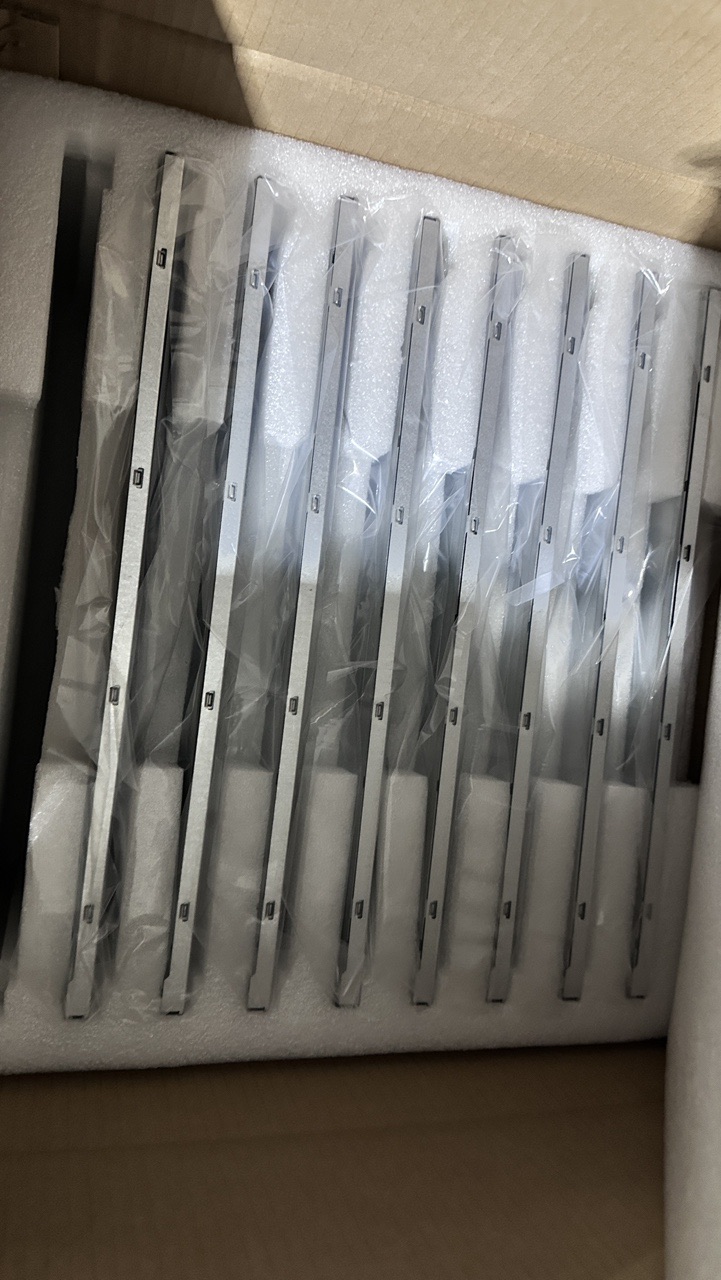

Product packaging
