27.0" 1920X1080 FHD LCD Panel DV270FHM-R01 Marine Navigation Display Sunlight Readable Screen 27 Inch LCD Modules

$253

Key attributesTypeTFTDisplay Size27 inchPlace of OriginBeijing, ChinaSupplier Ty

Product Description

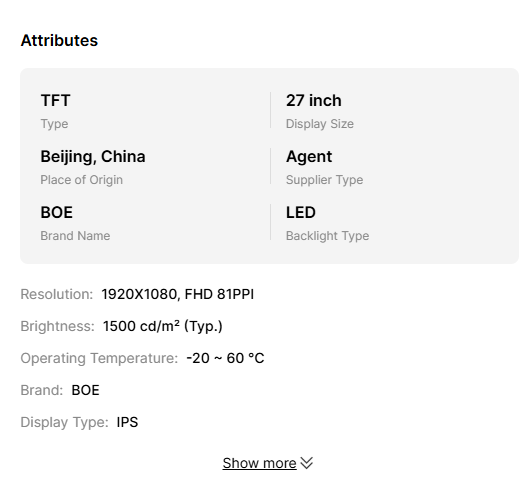

Key attributes

Type
TFT
Display Size
27 inch
Place of Origin
Beijing, China
Supplier Type
Agent
Brand Name
BOE
Backlight Type
LED
Resolution
1920X1080, FHD 81PPI
Brightness
1500 cd/m² (Typ.)
Operating Temperature
-20 ~ 60 °C
Brand
BOE
Display Type
IPS
Mounting Type
Panel Mounting
Screen Size
27.0"
Communication Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
View angle
R/L/U/D 89/89/89/89
Contrast Ratio
1000:1
Backlight
WLED , 50K hours , W/O Driver
Application
16.7M 100% sRGB
Display Mode
ADS, Normally Black, Transmissive
Response time
14ms
Weight
3.2KG
Total Consumption
40.2W (Typ.)

Packaging and delivery

Selling Units
Single item
Single package size
70X40X10 cm
Single gross weight
3.200 kg



Product Paramenters



Details Images


DV270FHM-R01       27 inch LCD Basic detail
LCD Modules Brand
BOE
Model
DV270FHM-R01
Power consumption
40.2W (Typ.)
Aspect Ratio
16:9 (H:V)
Resolution
1920(RGB)×1080, FHD 81PPI
Backlight
WLED , 50K hours , No Driver
Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Display Mode
ADS, Normally Black, Transmissive
Brightness
1500 (Typ.)(cd/m²)
Response
14 (Typ.)(G to G)
Contrast
1000:1 (Typ.) (TM)
Color Depth
16.7M 100% sRGB
View Angle
89/89/89/89
Weight
3.2KG
Active Area (mm)
597.888×336.312mm
Work Temp
-20 ~ 60 °C
Outline Dimension
626×363.8×15mm
Storage Temp
-30 ~ 80 °C


Popular Size


"Need a screen about 27'' LCD that survives your specs, not the other way around?"
→ Get your tailored LCD quote in 24 hours.
Brand
Resolution
Model
Interface
Brightness
Contrast
Active Area
Work
Temp
LED Life Time
BOE
1920*1080
MV270FHM-N20
LVDS
300
1000:1
597.888*336.312
0/50
30K
BOE
1920*1080
DV270FHM-P20
LVDS
300
1000:1
597.888*336.312
0/50
30K
AUO
1920*1080
P270HVN02.0
LVDS
300
3000:1
597.6*336.15
0/50
40K
AUO
1920*1080
M270HVN02.0
LVDS
300
3000:1
597.6*336.15
0/50
40K
BOE
2560*1440
MV270QHM-N30
LVDS
350
1000:1
596.736*335.664
0/50
30K
AUO
2560*1440
G270QAN02.0
LVDS
350
1000:1
596.736*335.664
0/50
30K
AUO
2560*1440
G270QAN01.0
LVDS
350
1000:1
596.736*335.664
0/50
30K
AUO
3840*2160
G270ZAN01.3
eDP
350
1000:1
596.16*335.34
0/50
30K
BOE
3840*2160
MV270QUM-N70
eDP
360
1200:1
596.736*335.664
0/50
30K
AUO
2560*1440
G270QAN01.3
LVDS
400
1600:1
596.736*335.664
0/50
30K
AUO
2560*1440
G270QAN01.4
LVDS
400
2000:1
596.736*335.664
0/50
50K
BOE
3840*2160
MV270QUM-N50
eDP
400
1000:1
596.736*335.664
0/50
30K
AUO
3840*2160
G270ZAN01.5
eDP
500
1000:1
596.16*335.34
0/50
50K
AUO
2560*1440
G270QAN01.2
LVDS
550
1000:1
596.736*335.664
0/50
50K
AUO
3840*2160
G270ZAN01.1
V-by-
One
800
1000:1
596.16*335.34
0/50
50K
AUO
1920*1080
G270HAN01.0
LVDS
1000
1000:1
597.888*336.312
0/50
50K
AUO
1920*1080
G270HAN01.1
LVDS
1000
1000:1
597.888*336.312
0/50
50K
BOE
1920*1080
DV270FHM-R01
LVDS
1500
1000:1
597.888*336.312
-20/60
50K
