2.8'' LCD Panel 2.8 Inch 480*480 LCD Modules 30PIN MIPI Round LCD Display for Small Smart Watch

$13.4

Key attributesTypeTFTDisplay Size2.8 inchPlace of OriginZhejiang, ChinaSupplier

Product Description

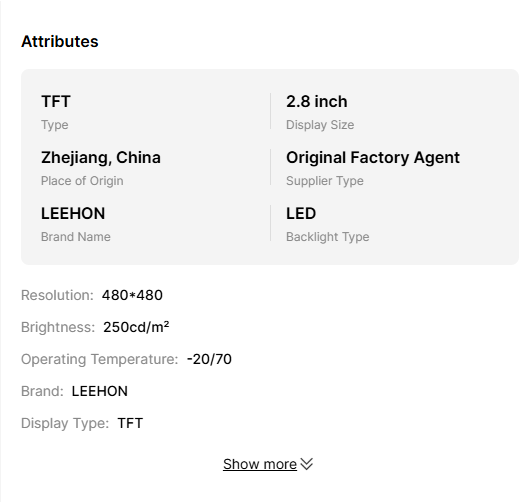

Key attributes

Type
TFT
Display Size
2.8 inch
Place of Origin
Zhejiang, China
Supplier Type
Original Factory Agent
Brand Name
LEEHON
Backlight Type
LED
Resolution
480*480
Brightness
250cd/m²
Operating Temperature
-20/70
Brand
LEEHON
Display Type
TFT
Screen Size
2.8 Inch
Communication Interface
MIPI
Driver Ic
ST7701S
Active Area
70.128*70.128mm
Outline Dimension
77.02*42.68*1.61mm
Viewing Angle
80/80/80/80
Contrast Ratio
1200:1
Electrical interface
Mipi
Response time
30 (Typ.)(Tr/Td)
Backlight
20K hours
Power Cosumption
0.45W
Display mode
Normally black

Packaging and delivery

Selling Units
Single item
Single package size
10X12X5 cm
Single gross weight
0.050 kg

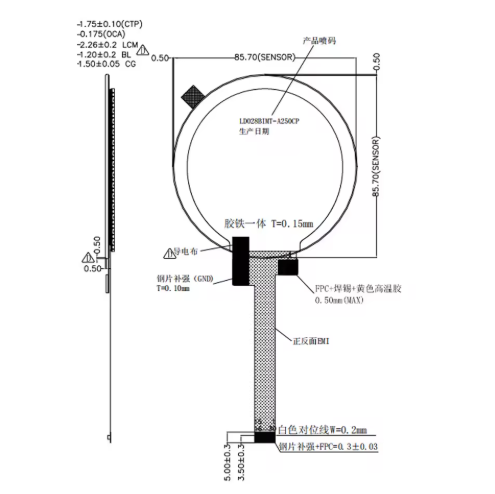

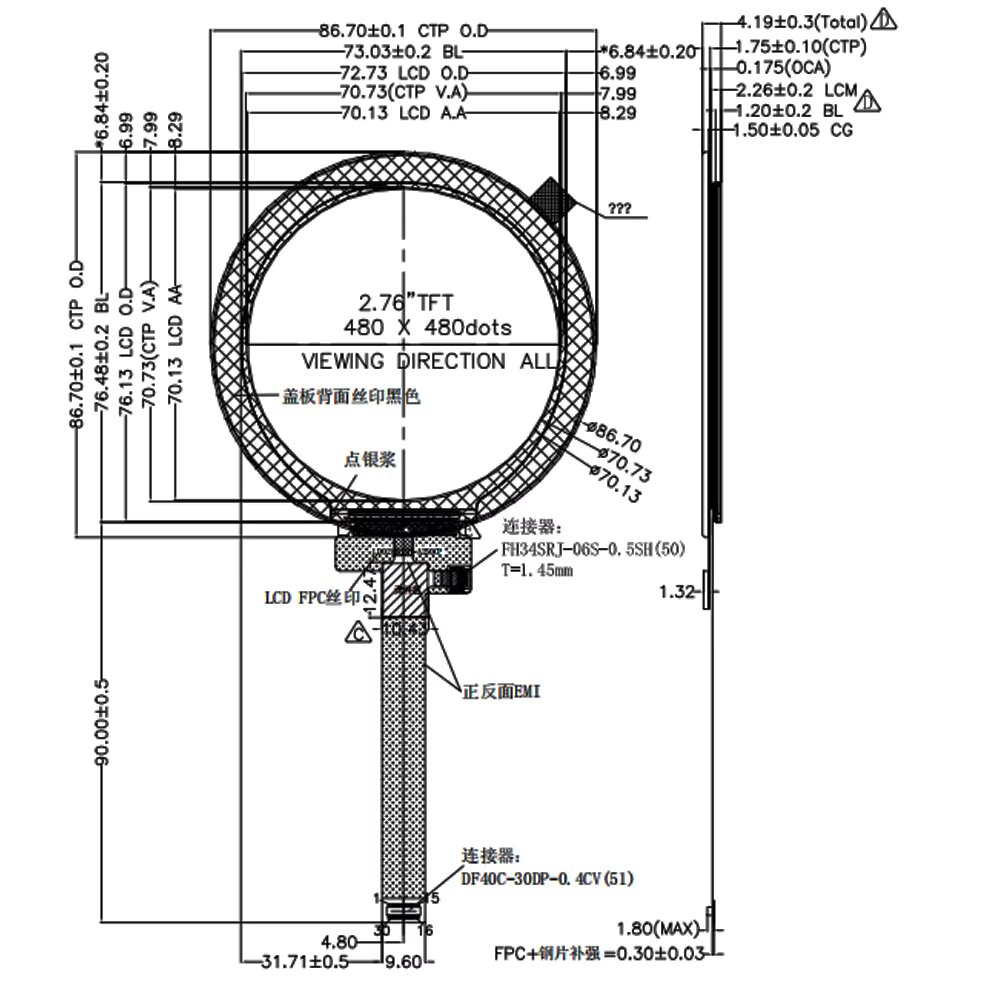

Product Paramenters

H07639ea4a6bc4e33b7ba3ac47a5b55abk (1).jpeg


Details Images


LH8028WV001-T    2.8 inch LCD Basic detail
LCD Modules Brand
LEEHON
Model
LH8028WV001-T
Resolution
480*480
Surface Treatment
Antiglare, Hard coating (3H)
Interface
MIPI
Support Color
262K/16.7M
Brightness
250 cd/m²
Weight
0.01KG
Active Area (mm)
70.128*70.128 mm
Light Source
20K hours
Outline Dimension
77.02*42.68*1.61 mm
Operating Mode
Normally Black
Contrast
1200:1
Work Temperature
-20 ~ 70 °C
View Angle
80/80/80/80
Storage Temp
-30 ~ 80 °C

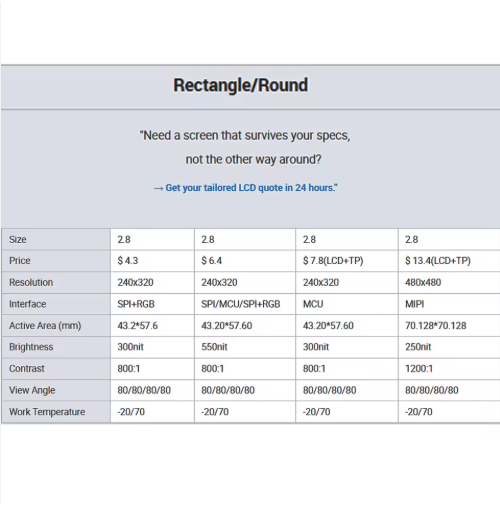

Rectangle/Round
"Need a screen that survives your specs, not the other way around? → Get your tailored LCD quote in 24 hours."
Size
2.8
2.8
2.8
2.8
Price
$ 4.3
$ 6.4
$ 7.8(LCD+TP)
$ 13.4(LCD+TP)
Resolution
240x320
240x320
240x320
480x480
Interface
SPI+RGB
SPI/MCU/SPI+RGB
MCU
MIPI
Active Area (mm)
43.2*57.6
43.20*57.60
43.20*57.60
70.128*70.128
Brightness
300nit
550nit
300nit
250nit
Contrast
800:1
800:1
800:1
1200:1
View Angle
80/80/80/80
80/80/80/80
80/80/80/80
80/80/80/80
Work Temperature
-20/70
-20/70
-20/70
-20/70

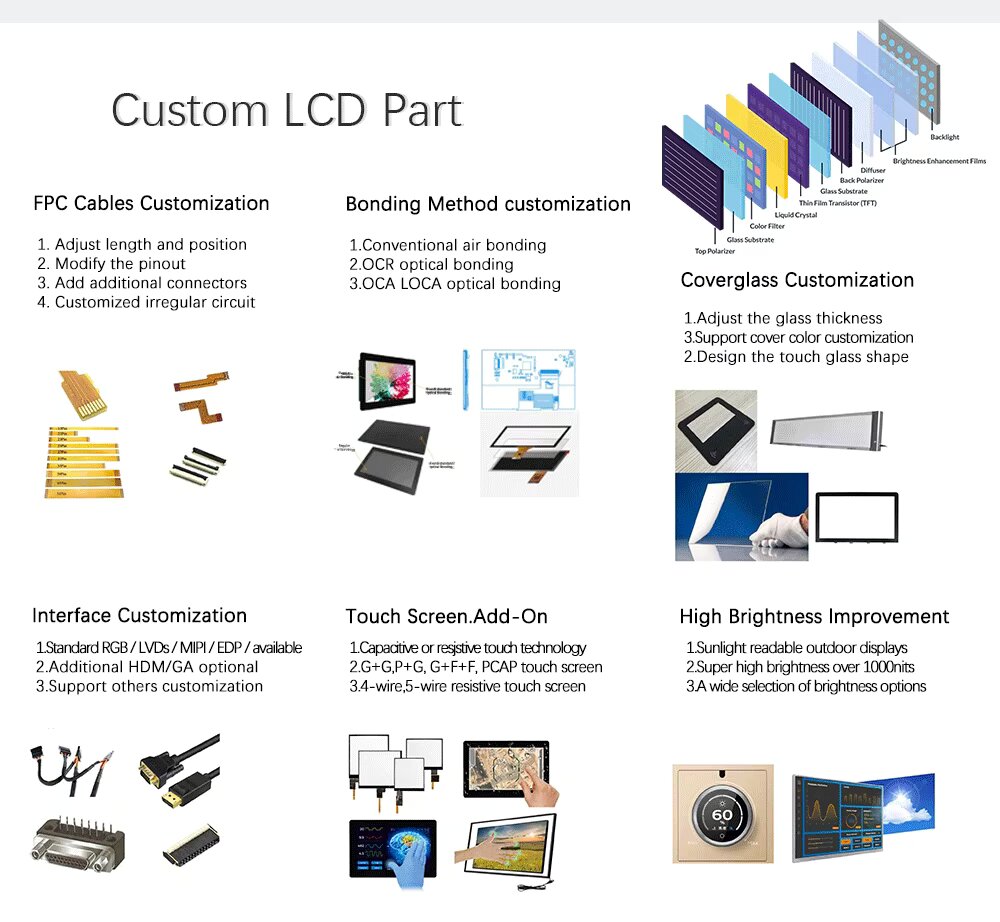

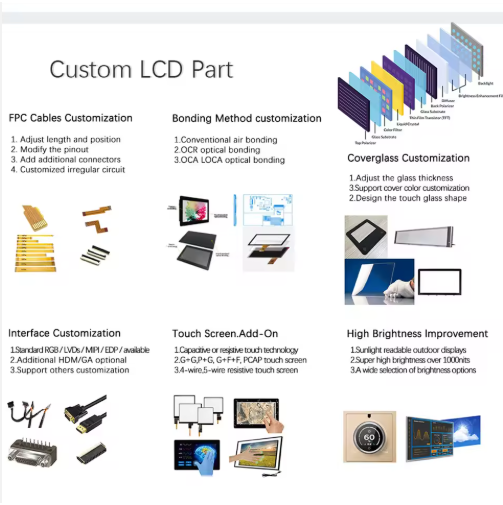

OEM & ODM

H3f16838c77c949ceae77812a347d9ce5Z (1).jpg

You can tell us your specific needs and we can choose the best product solution for you ！ ！ ！

Our Factory



Product packaging
